EDGEH
Purpose: Used to define dimensions of bolted web splices.
® Given in girder input

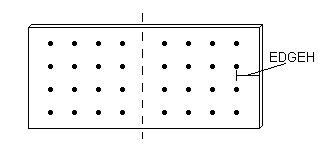

Horizontal edge distance (inches or mm) on web splice plate from center of bolts nearest the edge. (Also see EDGEV, EDGEW, GAGEH, GAGEV, NLINEH, NLINEV, SPLT, SPLTYP.)
